Connection Settings

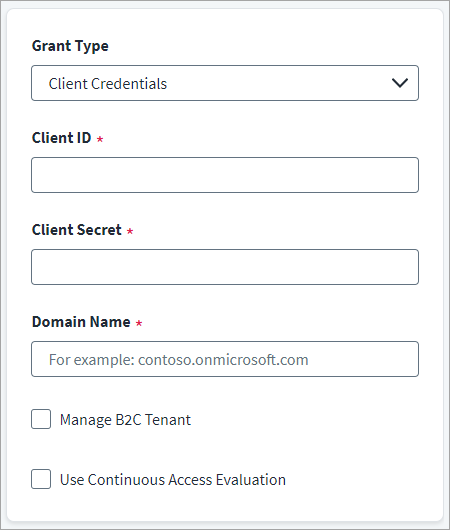

Provide the information required to connect to the Azure Active Directory instance based on the selected Grant Type for OAuth 2.0 authentication:

  1. In the Client ID field, enter the Azure Active Directory API Client ID for OAuth2 authentication.

  2. In the Client Secret field, enter the Azure Active Directory API Client Secret.

  3. In the Domain Name field, enter the name of the Azure Active Directory domain to be managed. For example, contoso.onmicrosoft.com.

  4. (Optional) Select the Manage B2C Tenant checkbox to manage identities in the Azure Active Directory B2C Tenant.

    Note
    Delta Aggregation is not applicable if the Manage B2C Tenant checkbox is selected.

  5. (Optional) Select the Use Continuous Access Evaluation checkbox to enable the connector to leverage the Azure Active Directory real-time enforcement of Conditional Access location and risk policies along with instant enforcement of token revocation events for an enterprise application (service principal).

  6. Select Save.

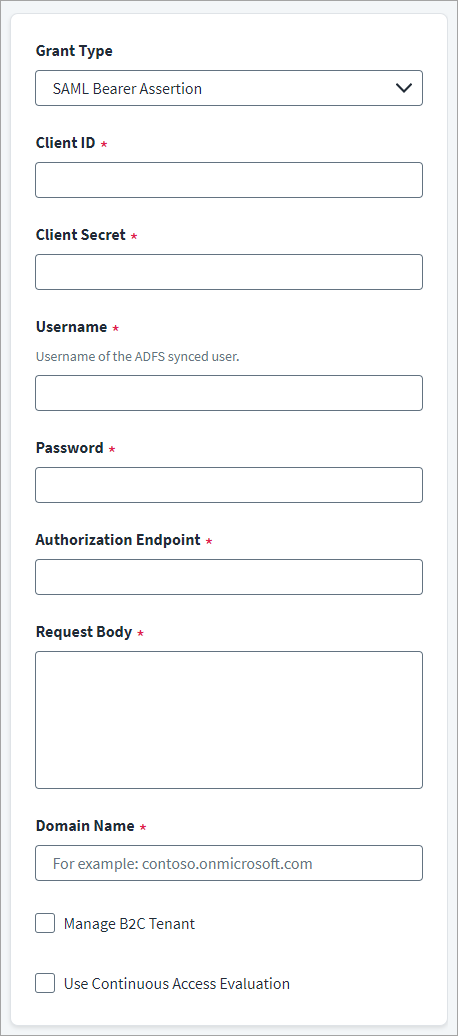

  1. In the Client ID field, enter the Azure Active Directory API Client ID for OAuth2 authentication.

  2. In the Client Secret field, enter the Azure Active Directory API Client Secret.

  3. Enter the Username for authorization.

  4. Enter the Password of the user for authorization.

  5. In the Authorization Endpoint field, enter the endpoint URL of authorization server.

  6. In the Request Body field, enter the request body for SAML assertion.

    For more information on SAML Request Body, see SAML Request Body.

  7. In the Domain Name field, enter the name of the Azure Active Directory domain to be managed. For example, contoso.onmicrosoft.com.

  8. (Optional) Select Manage B2C Tenant checkbox to manage identities in the Azure Active Directory B2C Tenant.

    Note
    Delta Aggregation is not applicable if the Manage B2C Tenant checkbox is selected.

  9. (Optional) Select the Use Continuous Access Evaluation checkbox to enable the connector to leverage the Azure Active Directory real-time enforcement of Conditional Access location and risk policies along with instant enforcement of token revocation events for an enterprise application (service principal).

  10. Select Save.

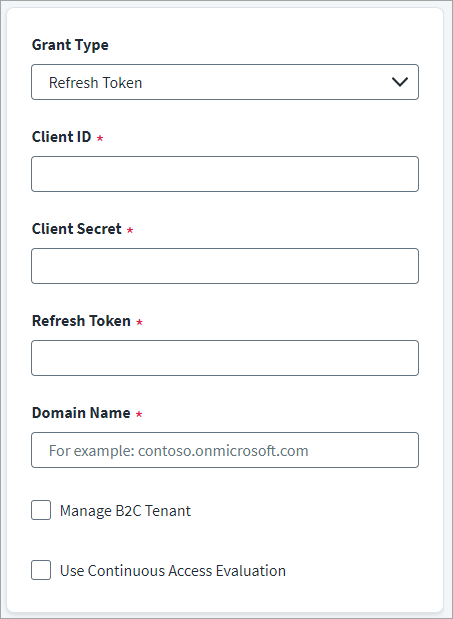

  1. In the Client ID field, enter the Azure Active Directory API Client ID for OAuth2 authentication.

  2. In the Client Secret field, enter the Azure Active Directory API Client Secret.

  3. Enter the valid Refresh Token.

  4. In the Domain Name field, enter the name of the Azure Active Directory domain to be managed. For example, contoso.onmicrosoft.com.

  5. (Optional) Select Manage B2C Tenant checkbox to manage identities in the Azure Active Directory B2C Tenant.

    Note
    Delta Aggregation is not applicable if the Manage B2C Tenant checkbox is selected.

  6. (Optional) Select the Use Continuous Access Evaluation checkbox to enable the connector to leverage the Azure Active Directory real-time enforcement of Conditional Access location and risk policies along with instant enforcement of token revocation events for an enterprise application (service principal).

  7. Select Save.

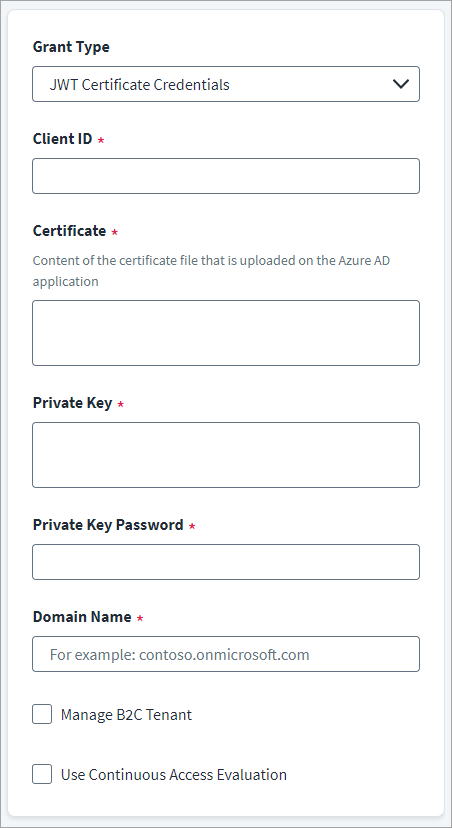

  1. In the Client ID field, enter the Azure Active Directory API Client ID for OAuth2 authentication.

  2. In the Certificate field, provide the unique alpha-numeric value of certificate used to sign the JWT assertion.

  3. Enter the Private Key text used for encrypting the JWT assertion.

  4. Enter the Private Key Password that is used for decrypting the private key.

  5. In the Domain Name field, enter the name of the Azure Active Directory domain to be managed. For example, contoso.onmicrosoft.com.

  6. (Optional) Select Manage B2C Tenant checkbox to manage identities in the Azure Active Directory B2C Tenant.

    Note
    Delta Aggregation is not applicable if the Manage B2C Tenant checkbox is selected.

  7. (Optional) Select the Use Continuous Access Evaluation checkbox to enable the connector to leverage the Azure Active Directory real-time enforcement of Conditional Access location and risk policies along with instant enforcement of token revocation events for an enterprise application (service principal).

  8. Select Save.
