Sample Architecture

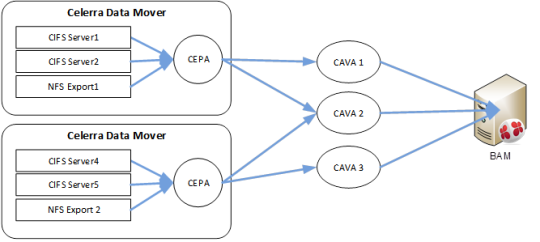

In the schema below, the first physical Data Mover is configured to send events to CEE 1 & 2. CEE 1 & 2 are configured to send event notifications to the Activity Monitor.

The second physical Data Mover is configured to send events to CEE 2 & 3. CEE 2 & 3 are configured to send event notifications to the Activity Monitor.

  • CIFS Server 1
  • CIFS Server 2
  • NFS Export 1

The Activity Monitor monitors using CEE 2 & 3:

  • CIFS Server 4
  • CIFS Server 5
  • NFS Export 2
