Credential Provider Secret Path Expressions

Revised Date: 21 November 2024

Use the path expressions on this page to implement your configured credential providers into your source configurations.

Generic Format

Specific secret path expressions vary for each individual credential provider. The generic format of a secret path can be expressed as follows:

secrets://{vault_name}/{URI_Path_to_secret}/{secretKey}?version={versionnumber}

Important
The provided example has four parts to it, each highlighted with curly braces ({ }). Each part needs to be URI-encoded separately. SailPoint does not support complete URI encoding.

Secret Path Expressions by Credential Provider

The list is divided by the credential provider, and the secret path expressions they support are listed below them.

For information on how to configure the AWS Secret Manager credential provider, refer to AWS Secrets Manager.

Path syntax: {Secret ARN}/{secretKey}

For example:

Before Encoding

  • Using Secret ARN :

secrets://aws-vault/arn:aws:secretsmanager:us-east-1:441113549707:secret:orgName/cred/applicationName/directoryName/username

Important
The URL path should always start with the prefix, secrets://. Each attribute in the URL path must be URL-encoded. Each URL attribute in the path is case-sensitive.

After Encoding

After you encode the URL path, it should appear as follows:

  • Using Secret ARN :

secrets://aws-vault/arn%3Aaws%3Asecretsmanager%3Aus-east-1%3A441113549707%3Asecret%3AorgName%2Fcred%2FapplicationName%2FdirectoryName/username

The following is an explanation of the attributes of this URL:

  • Aws-vault – Configured Credential Provider in the Credential Provider Section

  • arn:aws:secretsmanager:us-east-1:441113549707:secret:orgName/cred/applicationName/directoryName – Secret Path ARN

  • username – Secret Key which needs to be fetched from the AWS secrets manager.

Tip
Use urlencoder.org to encode your URL attributes.

Path syntax: {Secret ARN}/{secretKey}

For example:

Before Encoding

  • Using Secret ARN :

secrets://aws-vault/arn:aws:secretsmanager:us-east-1:441113549707:secret:orgName/cred/applicationName/directoryName/password

Important
The URL path should always start with the prefix, secrets://. Each attribute in the URL path must be URL-encoded. Each URL attribute in the path is case-sensitive

After Encoding

After you encode the URL path, it should appear as follows:

  • Using Secret ARN :

secrets://aws-vault/arn%3Aaws%3Asecretsmanager%3Aus-east-1%3A441113549707%3Asecret%3AorgName%2Fcred%2FapplicationName%2FdirectoryName/password

The following is an explanation of the components of this URL:

  • Aws-vault – Configured Credential Provider in the Credential Provider Section

  • arn:aws:secretsmanager:us-east-1:441113549707:secret:orgName/cred/applicationName/directoryName – Secret Path ARN

  • password – Secret Key which needs to be fetched from the AWS secrets manager.

Tip
Use urlencoder.org to encode your URL attributes.

If any secret paths have a prefix or a suffix, you must append a query parameter to the secret path as follows:

  • To add a prefix – ?prefix=<prefix>

    For example, if the secret value returned after evaluation is LocalAdmin, but the complete value required by the secret field is DomainOne\LocalAdmin then the secret path expression will be as follows to add the required prefix:

    secrets://aws-vault/arn%3Aaws%3Asecretsmanager%3Aus-east-1%3A441113549707%3Asecret%3AorgName%2Fcred%2FapplicationName%2FdirectoryName/password?prefix=DomainOne%5C

  • To add a suffix – ?suffix=<suffix>

    For example, if the secret value returned after evaluation is localadministrator, but the complete value required by the secret field is localadminstrator@sp.com then the secret path expression will be as follows to add the required suffix:

    secrets://aws-vault/arn:aws:secretsmanager:us-east-1:441113549707:secret:orgName/cred/applicationName/directoryName/password?suffix=%40sp.com

  • To add a prefix and suffix – ?prefix=<prefix>&suffix=<suffix>

    For example, if the secret value returned after evaluation is LocalAdmin, but the complete value required by the secret field is DomainOne\LocalAdmin@sp.com then the secret path expression will be as follows to add the required prefix:

    secrets://aws-vault/arn:aws:secretsmanager:us-east-1:441113549707:secret:orgName/cred/applicationName/directoryName/password?prefix=DomainOne%5C&suffix=%40sp.com

Important
All input parameters must be encoded.

Standard format for credential path

secrets://{vault-name}/{secret ARN}/{secretKey}?prefix=someValue&suffix=someValue2&versionId=123&versionStage=PREVIOUS

Important
Prefix, suffix, versionId and versionStage are optional.

The AWS Secrets Manager has provision to store secrets in two ways:

  1. In Key value / JSON / Map format

  2. Plain text format.

Note
For the secrets which are stored in plain text format, there is no need to provide the “secret key” in the credential path.

For example:

Before Encoding

  • Using Secret ARN :

secrets://aws-vault/arn:aws:secretsmanager:us-east-1:441113549707:secret:orgName/cred/applicationName/directoryName

Important
The URL path should always start with the prefix, secrets://. Each attribute in the URL path must be URL-encoded. Each URL attribute in the path is case-sensitive

After Encoding

After you encode the URL path, it should appear as follows:

  • Using Secret ARN :

secrets://aws-vault/arn%3Aaws%3Asecretsmanager%3Aus-east-1%3A441113549707%3Asecret%3AorgName%2Fcred%2FapplicationName%2FdirectoryName

Other Query Parameters

  1. versionId – The unique identifier of the version of the secret to retrieve. If you include both this parameter and VersionStage, the two parameters must refer to the same secret version. If you don't specify both the VersionStage and VersionId, then Secrets Manager returns the AWSCURRENT version.

    Example :

    secrets://aws-vault/arn%3Aaws%3Asecretsmanager%3Aus-east-1%3A441113549707%3Asecret%3AorgName%2Fcred%2FapplicationName%2FdirectoryName/password?versionId=123

  2. versionStage – The staging label of the version of the secret to retrieve.

    Secrets Manager uses staging labels to keep track of different versions during the rotation process. If you include both this parameter and VersionId, the two parameters must refer to the same secret version. If you don't specify both VersionStage and VersionId, Secrets Manager returns the AWSCURRENT version.

    Example :

    secrets://aws-vault/arn%3Aaws%3Asecretsmanager%3Aus-east-1%3A441113549707%3Asecret%3AorgName%2Fcred%2FapplicationName%2FdirectoryName/password?versionStage=AWSCURRENT

  3. versionId and versionStage – If you include both the parameters VersionStage and VersionId, the two parameters must refer to the same secret version. If you don't specify both the VersionStage and VersionId, Secrets Manager returns the AWSCURRENT version.

    Example :

    secrets://aws-vault/arn%3Aaws%3Asecretsmanager%3Aus-east-1%3A441113549707%3Asecret%3AorgName%2Fcred%2FapplicationName%2FdirectoryName/password?versionId=123&versionStage=AWSCURRENT

For more information on how to configure the CyberArk Central Credential Provider (CCP), refer to CyberArk Central Credential Provider (CCP).

Path syntax – {params required to fetch secret}/{secretKey}

Secret URL – secrets://{CyberArk Central Credential Provider Source Name}/{params required to fetch secret}/{secretKey}

Important
The URL path should always start with the prefix, secrets://. Each URL should be URL-encoded. Each URL attribute in the path is case-sensitive

The CyberArk Central Credential Provider fetches secret using REST API. The REST API URL format to fetch secrets is as follows:

https://<IIS_Server_Host_URL>/<WebService_NAME>/api/Accounts?<param1>=<value>&<param2>=<value>&

Note
In the provided example, the parameters required to fetch the secret are <param1>=<value>&<param2>=<value>&

Secret URL example:

Before Encoding

secrets://<CyberArk Central Credential Provider Source>/<Object=Cloud Service-AWS-Salesforce-admin&AppID=Test1>/<Content>

Where:

  • <CyberArk Central Credential Provider Source> – Configured Credential Provider

  • <Object=Cloud Service-AWS-Salesforce-harshaladmin&AppID=Test1> – Parameters required to fetch secrets

  • <Content> – Key to retrieve from the secret response

After Encoding

secrets://CyberArk%20Central%20Credential%20Provider%20Source/Object%3DCloud%20Service-AWS-Salesforce-admin%26AppID%3DTest1/Content

Tip
Use urlencoder.org to encode your URL attributes.

If any secret paths have a prefix or a suffix, you must append a query parameter to the secret path as follows:

  • To add a prefix – ?prefix=<prefix>

    For example, if the secret value returned after evaluation is LocalAdmin, but the complete value required by the secret field is DomainOne\LocalAdmin then the secret path expression will be as follows to add the required prefix:

    secrets://CyberArk%20Central%20Credential%20Provider%20Source/Object%3DCloud%20Service-AWS-Salesforce-admin%26AppID%3DTest1/Content?prefix=DomainOne%5C

  • To add a suffix – ?suffix=<suffix>

    For example, if the secret value returned after evaluation is localadministrator, but the complete value required by the secret field is localadminstrator@sp.com then the secret path expression will be as follows to add the required suffix:

    secrets://CyberArk%20Central%20Credential%20Provider%20Source/Object%3DCloud%20Service-AWS-Salesforce-admin%26AppID%3DTest1/Content?prefix=suffix=%40sp.com

Important
All input parameters must be encoded.

For more information, refer to Retrieve a secret in the CyberArk documentation.

For information on how to configure the CyberArk Conjur Cloud credential provider, refer to CyberArk Conjur Cloud Credential Provider.

Note
The linked document is not maintained by SailPoint and is subject to change without notice.

Path syntax: secrets://{CredentialProviderSourceName}/{ResourceIdOfSecret}

Note

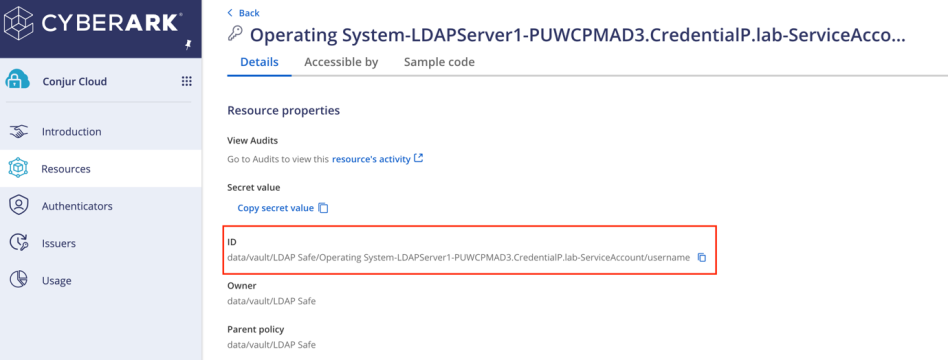

The ResourceIdofSecret attribute can be obtained from Conjur Cloud > Resources then select the created Secret.

For example:

Before Encoding

secrets://CyberarkConjurCloudSource/data/vault/LDAP Safe/Operating System-LDAPServer1-PUWCPMAD3.CredentialP.lab-ServiceAccount/username

Important
The URL path should always start with the prefix, secrets://. Each URL attribute should be URL-encoded. For example, CredentialProviderSourceName, ResourceIdOfSecret, the prefix, and the suffix must be encoded separately. Each URL attribute in the path is case-sensitive.

After Encoding

After you encode the URL path, it should appear as follows:

secrets://CyberarkConjurCloudSource/data%2Fvault%2FLDAP%20Safe%2FOperating%20System-LDAPServer1-PUWCPMAD3.CredentialP.lab-ServiceAccount%2Fusername

The following is an explanation of the attributes of this URL:

  • CyberarkConjurCloudSource – The Configured Credential Provider in the Credential Provider Section.

  • data%2Fvault%2FLDAP%20Safe%2FOperating%20System-LDAPServer1-PUWCPMAD3.CredentialP.lab-ServiceAccount%2Fusername – The encoded resource ID of the secret.

Tip
Use urlencoder.org to encode your URL attributes.

Path syntax: secrets://{CredentialProviderSourceName}/{ResourceIdOfSecret}

For example:

Before Encoding

secrets://CyberarkConjurCloudSource/data/vault/LDAP Safe/Operating System-LDAPServer1-PUWCPMAD3.CredentialP.lab-ServiceAccount/password

Important
The URL path should always start with the prefix, secrets://. Each URL attribute should be URL-encoded. For example, CredentialProviderSourceName, ResourceIdOfSecret, the prefix, and the suffix must be encoded separately. Each URL attribute in the path is case-sensitive.

After Encoding

After you encode the URL path, it should appear as follows:

secrets://CyberarkConjurCloudSource/data%2Fvault%2FLDAP%20Safe%2FOperating%20System-LDAPServer1-PUWCPMAD3.CredentialP.lab-ServiceAccount%2Fpassword

The following is an explanation of the components of this URL:

  • CyberarkConjurCloudSource – Configured Credential Provider in the Credential Provider Section.

  • data%2Fvault%2FLDAP%20Safe%2FOperating%20System-LDAPServer1-PUWCPMAD3.CredentialP.lab-ServiceAccount%2Fusername – The encoded resource ID of the secret.

Tip
Use urlencoder.org to encode your URL attributes.

If any secret paths have a prefix or a suffix, you must append a query parameter to the secret path as follows:

  • To add a prefix – ?prefix=<prefix>

    For example, if the secret value returned after evaluation is LocalAdmin, but the complete value required by the secret field is DomainOne\LocalAdmin then the secret path expression will be as follows to add the required prefix:

    secrets://CyberarkConjurCloudSource/data%2Fvault%2FLDAP%20Safe%2FOperating%20System-LDAPServer1-PUWCPMAD3.CredentialP.lab-ServiceAccount%2Fusername?prefix=DomainOne%5C

  • To add a suffix – ?suffix=<suffix>

    For example, if the secret value returned after evaluation is localadministrator, but the complete value required by the secret field is localadminstrator@sp.com then the secret path expression will be as follows to add the required suffix:

    secrets://CyberarkConjurCloudSource/data%2Fvault%2FLDAP%20Safe%2FOperating%20System-LDAPServer1-PUWCPMAD3.CredentialP.lab-ServiceAccount%2Fusername?suffix=%40sp.com

Important
All input parameters must be encoded.

For information on how to configure the HashiCorp Vault (Cloud) credential provider, refer to HashiCorp Vault (Cloud) Credential Provider.

Use the path expressions listed in this topic to use the HashiCorp Vault (Cloud) credential provider in your source authentication configurations.

Path syntax – {path_to_secret}/{secretKey}

Secret URL – secrets://{HashiCorp_Source_Name}/{path_to_secret}/{secretKey}

Important
The URL path should always start with the prefix, secrets://. Each URL should also be URL-encoded. Each URL attribute in the path is case-sensitive.

HashiCorp Vault (Cloud) supports static and dynamic secrets. Configure the required secret engines in the HashiCorp Vault (Cloud) server and provide their secret paths in the source.

  1. Go to the your HashiCorp secret engine's API document and locate the Get or Generate Credentials API section.

  2. Configure the API path to get credentials

    Note

    Everything after the API version in the URL should be used in place of <path to secret>.

    For example, the if URL to fetch secrets is as follows:

    http://<vault host>/v1/azure/creds/my-role

    Then the <path to secret> is as follows:

    azure/creds/my-role

  3. Define the key whose value needs to be read from the getCredentials API response for the <secretKey>.

    For example, consider the API response for getCredentials as follows:

    Copy
    {
    "data": {
        "client_id": "408bf248-dd4e-4be5-919a-7f6207a307ab",
        "client_secret": "9PfdaDP9qcf98ggw8WSttfVreFcN4q9c4m4x",
        ...
        }
    }

    If the secret expression wants the Client ID field from the connector source, then <secretKey> should be set to client_id.

Secret URL example:

Before Encoding

secrets://<HashiCorp Source>/<mysecret/Admin User>/<Admin username>

Where:

  • <HashiCorp Source> – Configured Credential Provider in the Credential Provider Section

  • <mysecret/Admin User> – Path to the secret

  • <Admin username> – Key to retrieve from the secret path

After Encoding

secrets://HashiCorp%20Source/mysecret%2FAdmin%20User/Admin%20username

Tip
Use urlencoder.org to encode your URL attributes.

Note

By default, the HashiCorp Vault (Cloud) cred ential provider checks the {secretKey} in response to the following paths by default:

  • $.

  • $.data

  • $.data.data

If any getCredentials API response returns {secretKey} from another path, then add the following entry key into the HashiCorp source XML for all those paths:

<entry key="secretPaths" value="path1,path2"/>

For example:

<entry key="secretPaths" value="data.data.data,data.path1"/>

For more information on SailPoint's REST APIs, refer to Best Practices: REST API Authentication and REST API - Update Source (Partial) in the SailPoint Developer Community.

You can fetch secrets from the K/V version2 engine. For more information, refer to Read secret version in the KV secrets engine - version 2 (API) section of the HashiCorp developer documentation.

Note
The linked document is not maintained by SailPoint and is subject to change without notice.

Path syntax – {secret-mount-path/data/path to secret}/{secretKey}{?version=<versionNumber>}

For example:

Before Encoding

secrets://HashiCorp Source/StaticSecrets-v2/data/Active Directory/PASSWORD/Pass word

After Encoding

secrets://HashiCorp%20Source/StaticSecrets-v2%2Fdata%2FActive%20Directory%2FPASSWORD/Pass%20word

Where:

  • HashiCorp Source – Configured Credential Provider in the Credential Provider Section

  • StaticSecrets-v2 – secret-mount-path

  • Active Directory/PASSOWRD – Path to the secret

  • Pass word – Key to retrieve from the secret path

Read Secret with version number example, after encoding:

secrets://HashiCorp%20Source/StaticSecrets-v2%2Fdata%2FActive%20Directory%2FPASSOWRD/Pass%20word?version=3

If any secret paths have a prefix or a suffix, you must append a query parameter to the secret path as follows:

  • To add a prefix – ?prefix=<prefix>

    For example, if the secret value returned after evaluation is LocalAdmin, but the complete value required by the secret field is DomainOne\LocalAdmin then the secret path expression will be as follows to add the required prefix:

    secrets://HashiCorp%20Source/StaticSecrets-v2%2Fdata%2FActive%20Directory%2FPASSWORD/Pass%20word?prefix=DomainOne%5C

  • To add a suffix – ?suffix=<suffix>

    For example, if the secret value returned after evaluation is localadministrator, but the complete value required by the secret field is localadminstrator@sp.com then the secret path expression will be as follows to add the required suffix:

    secrets://HashiCorp%20Source/StaticSecrets-v2%2Fdata%2FActive%20Directory%2FPASSWORD/Pass%20word?suffix=%40sp.com

Important
All input parameters must be encoded.

For information on how to configure the HashiCorp Vault (On-Premise) credential provider, refer to HashiCorp Vault (On-Premise) Credential Provider.

Path syntax – {path_to_secret}/{secretKey}

Secret URL – secrets://{HashiCorp_Source_Name}/{path_to_secret}/{secretKey}

Important
The URL path should always start with the prefix, secrets://. Each URL should also be URL-encoded. Each URL attribute in the path is case-sensitive.

HashiCorp Vault (On-Premise) supports static and dynamic secrets. Configure the required secret engines in the HashiCorp Vault (On-Premise) server and provide their secret paths in the source.

  1. Go to the your HashiCorp secret engine's API document and locate the Get or Generate Credentials API section.

  2. Configure the API path to get credentials

    Note

    Everything after the API version in the URL should be used in place of <path to secret>.

    For example, the if URL to fetch secrets is as follows:

    http://<vault host>/v1/azure/creds/my-role

    Then the <path to secret> is as follows:

    azure/creds/my-role

  3. Define the key whose value needs to be read from the getCredentials API response for the <secretKey>.

    For example, consider the API response for getCredentials as follows:

    Copy
    {
    "data": {
        "client_id": "408bf248-dd4e-4be5-919a-7f6207a307ab",
        "client_secret": "9PfdaDP9qcf98ggw8WSttfVreFcN4q9c4m4x",
        ...
        }
    }

    If the secret expression wants the Client ID field from the connector source, then <secretKey> should be set to client_id.

Secret URL example:

Before Encoding

secrets://<HashiCorp Source>/<mysecret/Admin User>/<Admin username>

Where:

  • <HashiCorp Source> – Configured Credential Provider in the Credential Provider Section

  • <mysecret/Admin User> – Path to the secret

  • <Admin username> – Key to retrieve from the secret path

After Encoding

secrets://HashiCorp%20Source/mysecret%2FAdmin%20User/Admin%20username

Tip
Use urlencoder.org to encode your URL attributes.

Note

By default, the HashiCorp Vault (On-Premise) credential provider checks the {secretKey} in response to the following paths by default:

  • $.

  • $.data

  • $.data.data

If any getCredentials API response returns {secretKey} from another path, then add the following entry key into the HashiCorp source XML for all those paths:

<entry key="secretPaths" value="path1,path2"/>

For example:

<entry key="secretPaths" value="data.data.data,data.path1"/>

For more information on SailPoint's REST APIs, refer to Best Practices: REST API Authentication and REST API - Update Source (Partial) in the SailPoint Developer Community.

You can fetch secrets from the K/V version2 engine. For more information, refer to Read secret version in the KV secrets engine - version 2 (API) section of the HashiCorp developer documentation.

Note
The linked document is not maintained by SailPoint and is subject to change without notice.

Path syntax – {secret-mount-path/data/path to secret}/{secretKey}{?version=<versionNumber>}

For example:

Before Encoding

secrets://HashiCorp Source/StaticSecrets-v2/data/Active Directory/PASSWORD/Pass word

After Encoding

secrets://HashiCorp%20Source/StaticSecrets-v2%2Fdata%2FActive%20Directory%2FPASSWORD/Pass%20word

Where:

  • HashiCorp Source – Configured Credential Provider in the Credential Provider Section

  • StaticSecrets-v2 – secret-mount-path

  • Active Directory/PASSOWRD – Path to the secret

  • Pass word – Key to retrieve from the secret path

Read Secret with version number example, after encoding:

secrets://HashiCorp%20Source/StaticSecrets-v2%2Fdata%2FActive%20Directory%2FPASSOWRD/Pass%20word?version=3

If any secret paths have a prefix or a suffix, you must append a query parameter to the secret path as follows:

  • To add a prefix – ?prefix=<prefix>

    For example, if the secret value returned after evaluation is LocalAdmin, but the complete value required by the secret field is DomainOne\LocalAdmin then the secret path expression will be as follows to add the required prefix:

    secrets://HashiCorp%20Source/StaticSecrets-v2%2Fdata%2FActive%20Directory%2FPASSWORD/Pass%20word?prefix=DomainOne%5C

  • To add a suffix – ?suffix=<suffix>

    For example, if the secret value returned after evaluation is localadministrator, but the complete value required by the secret field is localadminstrator@sp.com then the secret path expression will be as follows to add the required suffix:

    secrets://HashiCorp%20Source/StaticSecrets-v2%2Fdata%2FActive%20Directory%2FPASSWORD/Pass%20word?suffix=%40sp.com

Important
All input parameters must be encoded.
